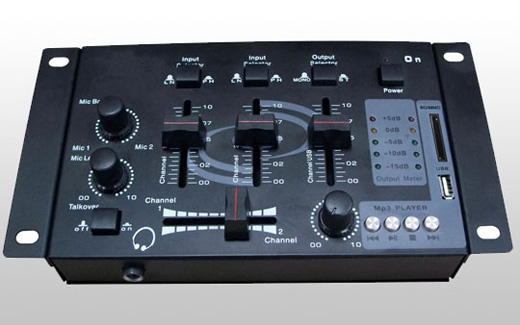

PROFESSIONAL 2-STEREO CHANNEL DJ MIXER
MODEL NO.: DX-2600USB+SD

FUNCTION:
USB AND SD HARD DRIVE PLAYER
PROFESSIONAL 2-STEREO CHANNEL DJ MIXER
SUPER-SMOOTH ULTRA SLIDE FADES
DUAL MIC INPUT
THE MIC BAL. CONTROL TWO MIC LEVEL BALANCE OR CLOSE ONE MIC INPUT
THE PHONO/LINE SWITCH SELECTS ONE OF THE INPUT PAIRS ON THE RESPECTIVE CHANNEL
SINGLE CD INPUT CHANNEL
MONO/STEREO OUTPUT SWITCH
OUTPUT METER: INDICATE THE LEVELS OF THE LEFT AND RIGHT MASTER CHANNELS
MIC TALKOVER
   POWER SUPPLY WITH ADAPTOR: 110VAC, 50HZ 10W

Specification:
Input Sensitivity ∕ Impedance
Mic1-2: 22mV∕600 Ohms
Phono1-2: 17mV∕50K Ohms
Line1-2: 175mV∕50K Ohms
CD: 1V∕50K Ohms
Output Level: Amp: 2.0V∕10-KOhm
Frequency Response: 20HZ – 20KHZ +∕-2dB
Talk over attenuation: -16Db
S∕N: Ratio (at 1KHZ)
Mic: >75dB∕22mV input
Phono: >55dB∕17mV input
Line: >80dB∕175mV input
CD: >80dB∕1V input
Machine dimensions: (H)5.2X(W)23.5X(D)12.5CM
Packing size: H)25.3X(W)54.5X(D)27.5CM/6PCS
