[MINI DJ KIT 001]
1) Mixer with USB+SD
Input Sensitivity ∕ Impedance
Mic1-2: 22mV∕600 Ohms
Phono1-2: 17mV∕50K Ohms
Line1-2: 175mV∕50K Ohms
CD: 1V∕50K Ohms
Output Level: Amp: 2.0V∕10-KOhm
Input Sensitivity ∕ Impedance
Mic1-2: 22mV∕600 Ohms
Phono1-2: 17mV∕50K Ohms
Line1-2: 175mV∕50K Ohms
CD: 1V∕50K Ohms
Output Level: Amp: 2.0V∕10-KOhm

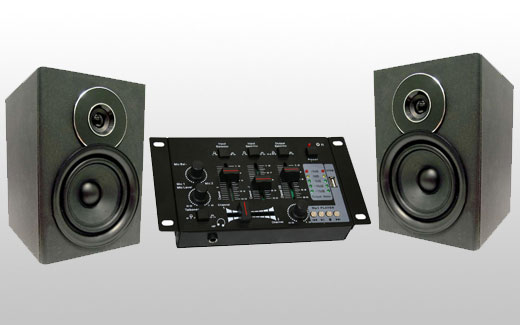

MODEL NO.: MINI DJ KIT 001
(DX-2600USB+ACTIVE SPEAKER+ACTIVE MICROPHONE)
Specification:
1) Mixer with USB+SD
Input Sensitivity ∕ Impedance
Mic1-2: 22mV∕600 Ohms
Phono1-2: 17mV∕50K Ohms
Line1-2: 175mV∕50K Ohms
CD: 1V∕50K Ohms
Output Level: Amp: 2.0V∕10-KOhm
Frequency Response: 20HZ – 20KHZ +∕-2dB
Talk over attenuation: -16Db
S∕N: Ratio (at 1KHZ)
Mic: >75dB∕22mV input
Phono: >55dB∕17mV input
Line: >80dB∕175mV input
CD: >80dB∕1V input
Power Source: 230 VAC, 50HZ 10W
Size: (mm): 235 x 126 x 50
Gross weight (g): 720
2) Active speaker:
Power: 18W
8 ohm impedance
40Hz-20Khz frequency response
90dB sensitivity
1” Tweeter
5” Woofer
PVC finish
