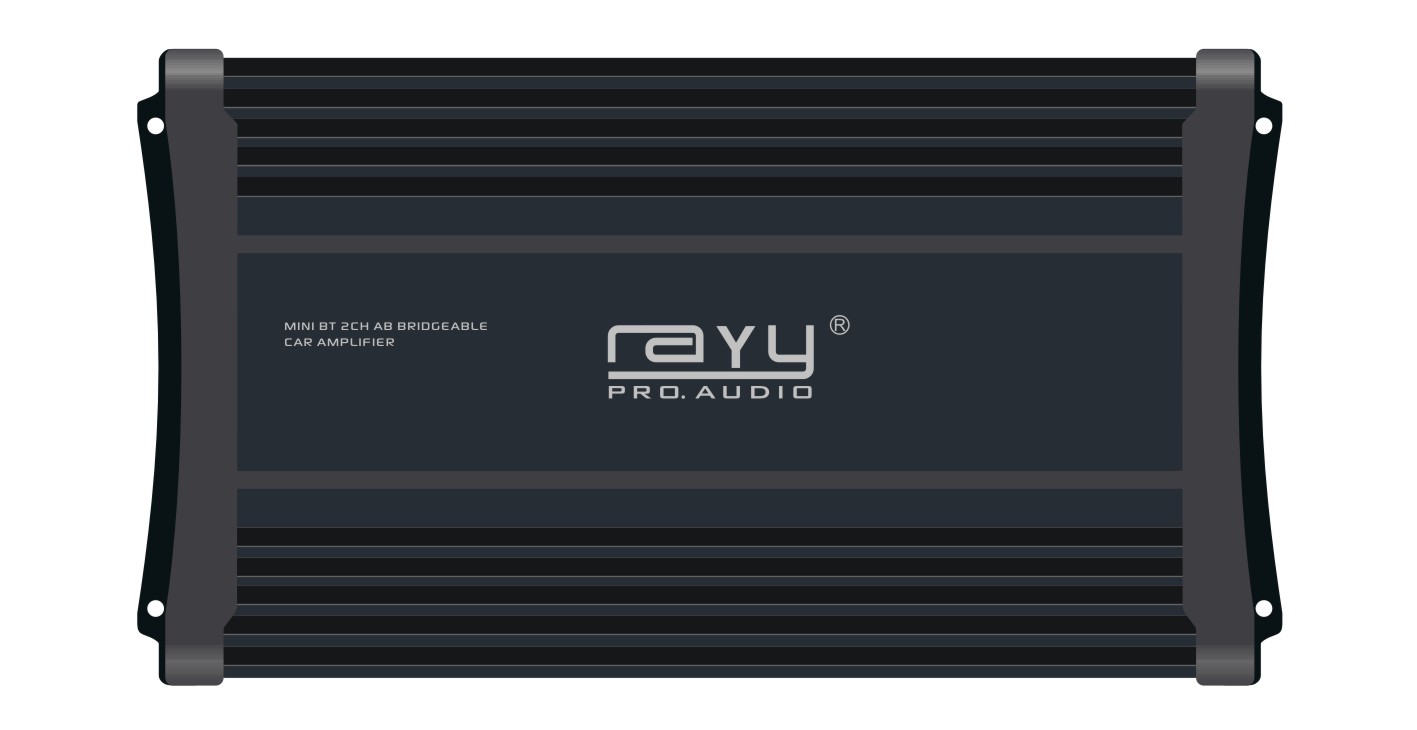

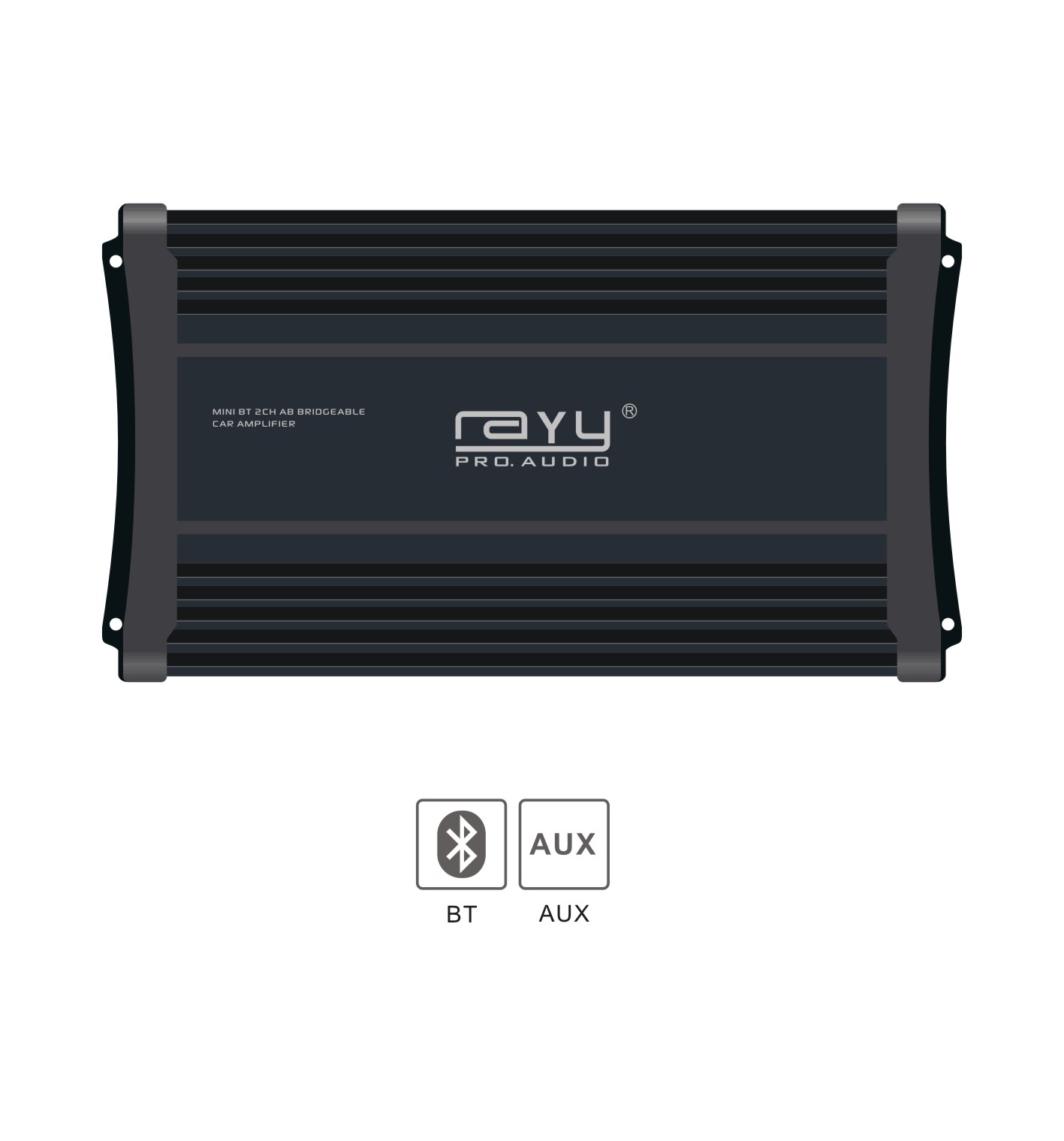

MINI BT 2CH/4CH AB BRIDGEABLE CAR AMPLIFIER

Function:

• High Glossy Black Brushed accents Heat Sink
• New Compact Design Based Class-AB
• Double Sided SMT Circuit Board
• LPF/HPF/Full Range Switch
• LPF Variable Crossover: 30Hz - 250Hz 24dB/Oct
• HPF Variable Crossover: 10Hz-250Hz 24dB /Oct
• Variable Bass Boost Frequency: 50Hz dB (Variable)
• Variable Bass Boost: 0-15dB - Soft Turn On/Off
• Nickel Plated Low Level RCA lnputs
• Power Protection LED lndicator
• Advanced Protection Circuit (Overload, Over Volt, Low
Volt, DC, Short Circuit Protection)

Specification:

•Input sensitivity: 200mV - 6V
•THD:＜0.01%
•S/N Ratio>95dB
•Channel Separation: >50dB
•Frequency Response: 10Hz - 50KHz
•Power Supply: DC 10V-16V Input
•Fuse Rating: 15A x 2
