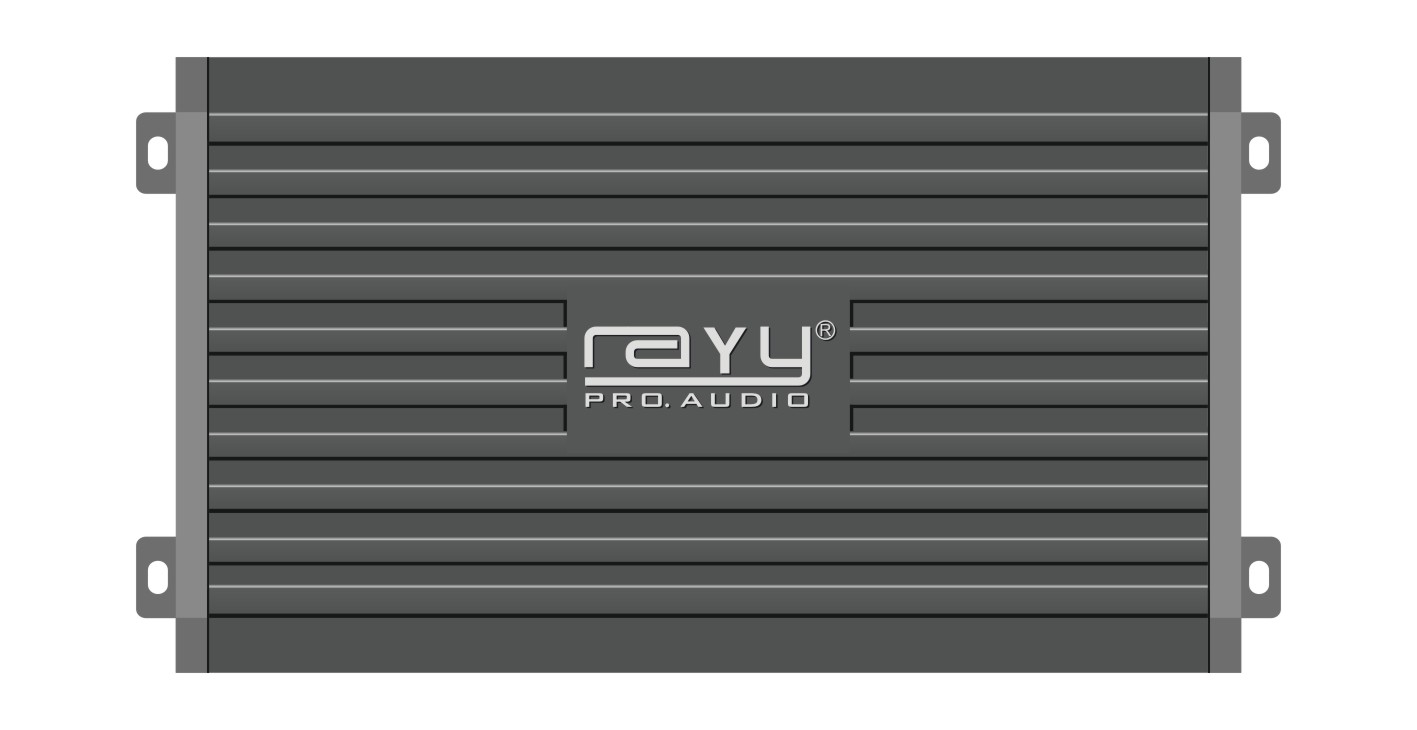

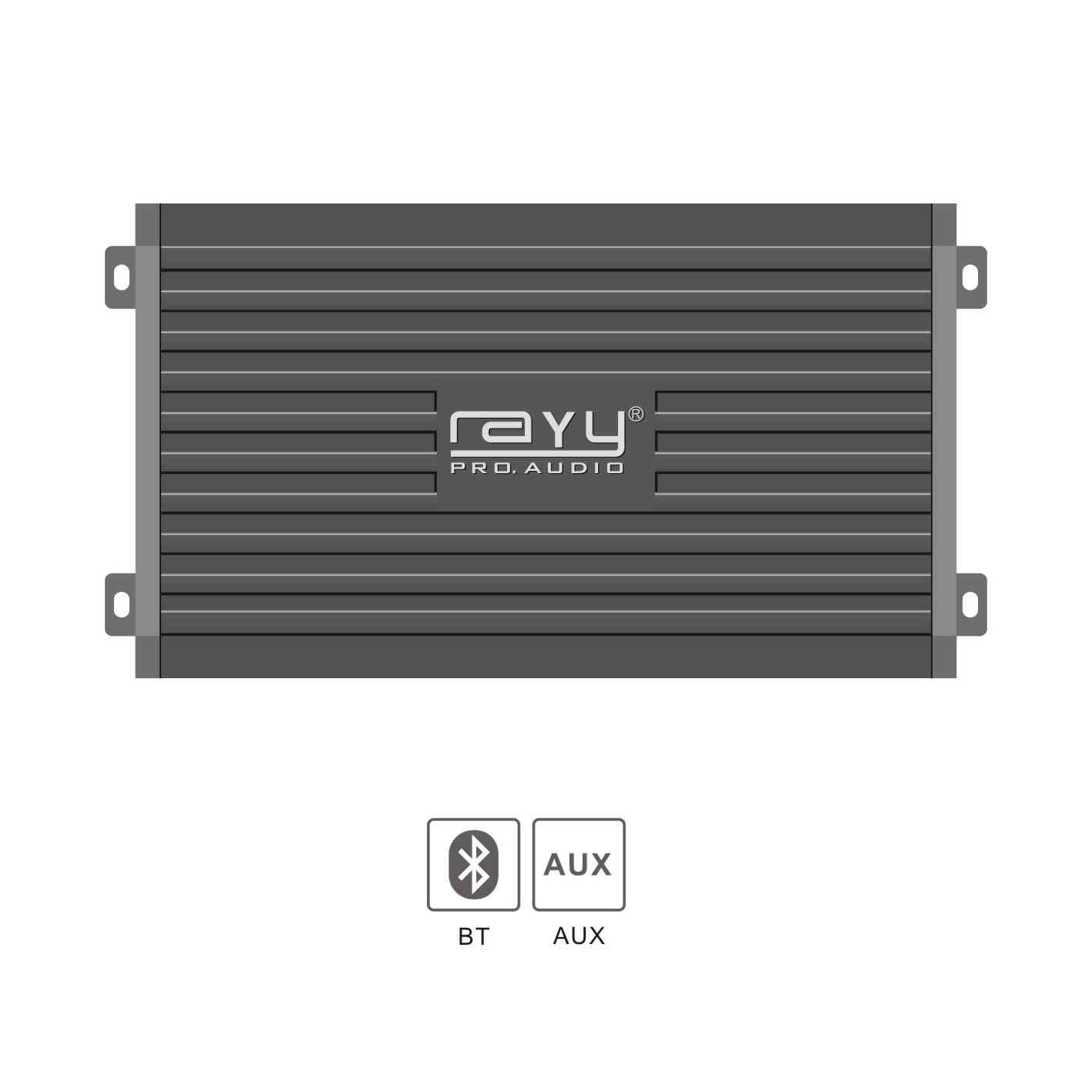

MINI BT CLASS D MONO BLOCK SUBWOOFER POWERD AMPLIFIER

Function:

• New Compact Design Based Class-D
• Double Sided SMT Circuit Board
• 1 Ohms Mono Block Subwoofer Stable
• LPF Variable Crossover: 35Hz-250Hz 24dB/Oct
• SUB SONIC Variable Crossover: 15Hz-55Hz 24dB /Oct
• Variable Bass Boost Frequency: 20Hz - 80Hz dB(Variable)
• Variable Bass Boost: 0-18dB Soft Turn On/Off
• Power Protection LED lndicators
• Advanced Protection Circuit (Overload, Over Volt, Low Volt,
  DC, Short Circuit Protection)

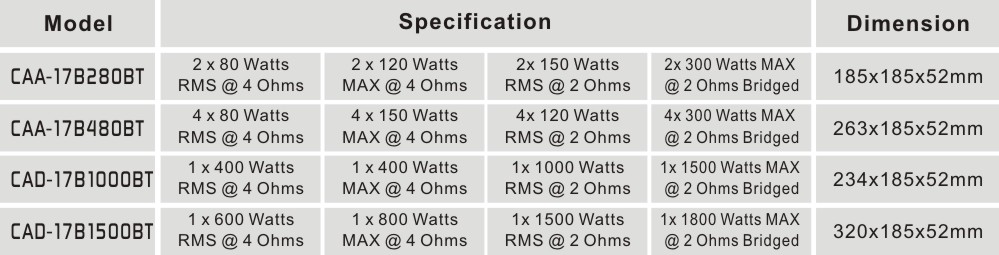

Specification:

•Input sensitivity: 200mV-6V
•THD:＜0.1%
•S/N Ratio>80dB
•Frequency Response: 15Hz - 250Hz
•Power Supply: DC 10V-16V Input
•Fuse Rating: 40A x 2
